100W LED Street Light, 10000lm, 250W HPS Equivalent, Daylight White, Scalable and Cobrahead
Specification
| Part No. | LO6016LD30W,40W,50W | LO6016LD60W,80W | LO6016LD100W,120W | LO6016LD150W,180W |
| Light Source Brand |   |
|||
| Driver |  |
|||
| QTY of Light Source (Pcs) | 1 | 1 | 2 | 3 |
| System Rated Power | 30W,40W,50W | 60W,80W | 100W,120W | 150W,180W |
| Color Rendering Index | ≥80 or 72 | |||
| Color Temperature | 6500 / 5000 / 4000 / 3000 / 2700K | |||
| Luminous Flux (lm) | 3,000~5,750 | 6,000~9,200 | 10,000~13,800 | 15,000~20,700 |
| Luminous Efficiency | Whole lamp up to 115 (lm/W) | |||
| Luminous Efficiency | Light Source up to 130 (lm/W) | |||
| Switching Cycles | 25,000 | |||
| Lighting Management System | Optical Induction / Automatic Timing / Central Management System | |||
| Control System | 1-10V | |||
| Working Environment (℃) | -40~50 | |||
| IP Rating | IP65 | |||
| IK Protection Grade | IK08 | |||
| Insulation Grade | Class I | |||
| Color Consistency (SDCM) | < 7 | |||
| Certification | CE, C-tick, RoHS, PSE | |||
| Warranty | 7 Years | |||
Rated Center Beam Intensity: 2681.2 cd

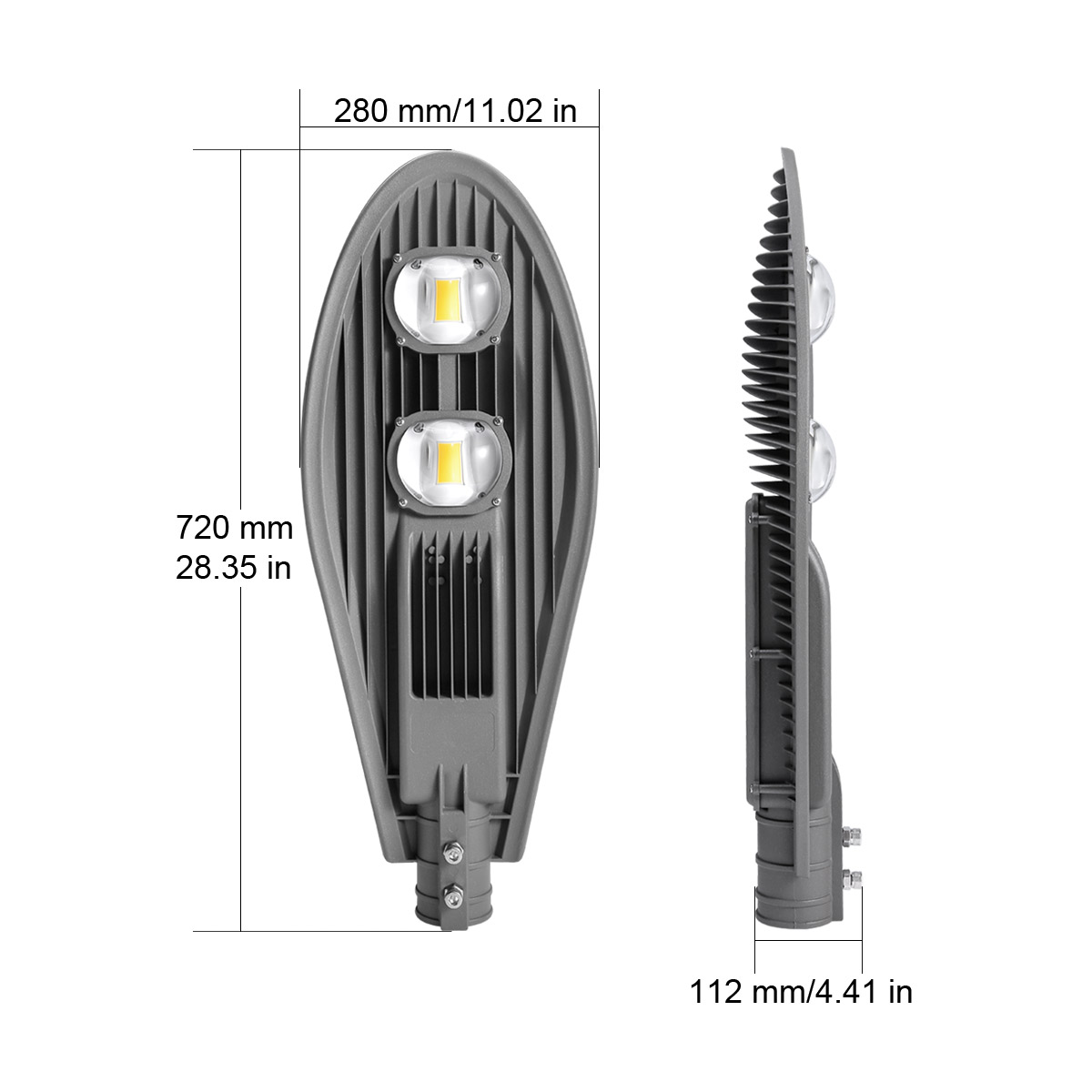

Lamp Pole Size: Φ 55 – 63 mm (can be ajusted by screws, please use M10 hexy key to loose/tighten the screws).
Please refer to this photometric report to select the mounting height of the lamp.
How to Install
1. Loosen the screws of lamp arm.
2. Connect the lamp wires to the mains supply.
3. Set the lamp arm into the lamp pole and tighten the screws.
Notes: If the dimension of the lamp arm is not compatible with the pole, you need to buy a pole-arm adapter.
